Special Order Item: Y

ADC® Multikuf™ Portable 4 Cuff Sphyg, Orange

SKU: 191732-OR

Status: Out of Stock

Each (1)

Special Ordered Via Quote




The Multikuf 732 is the most compact portable system available, with child, small adult, adult, and large adult cuff sizes included. The traditional Adcuff model features two-piece cuffs and bladders:

  • Durable 210 denier nylon construction
  • Integral flap that secures bladder and prevents bulging
  • ADC’s proprietary Size Guide marking system prevents mis-cuffing
  • Longer limb ranges for improved patient coverage
  • Gauge hang tab (on most sizes), bladder flap, and “property of” tag
  • Hook-and-loop adhesive rated to a minimum of 30,000 open/close cycles
  • Three-year warranty on cuffs

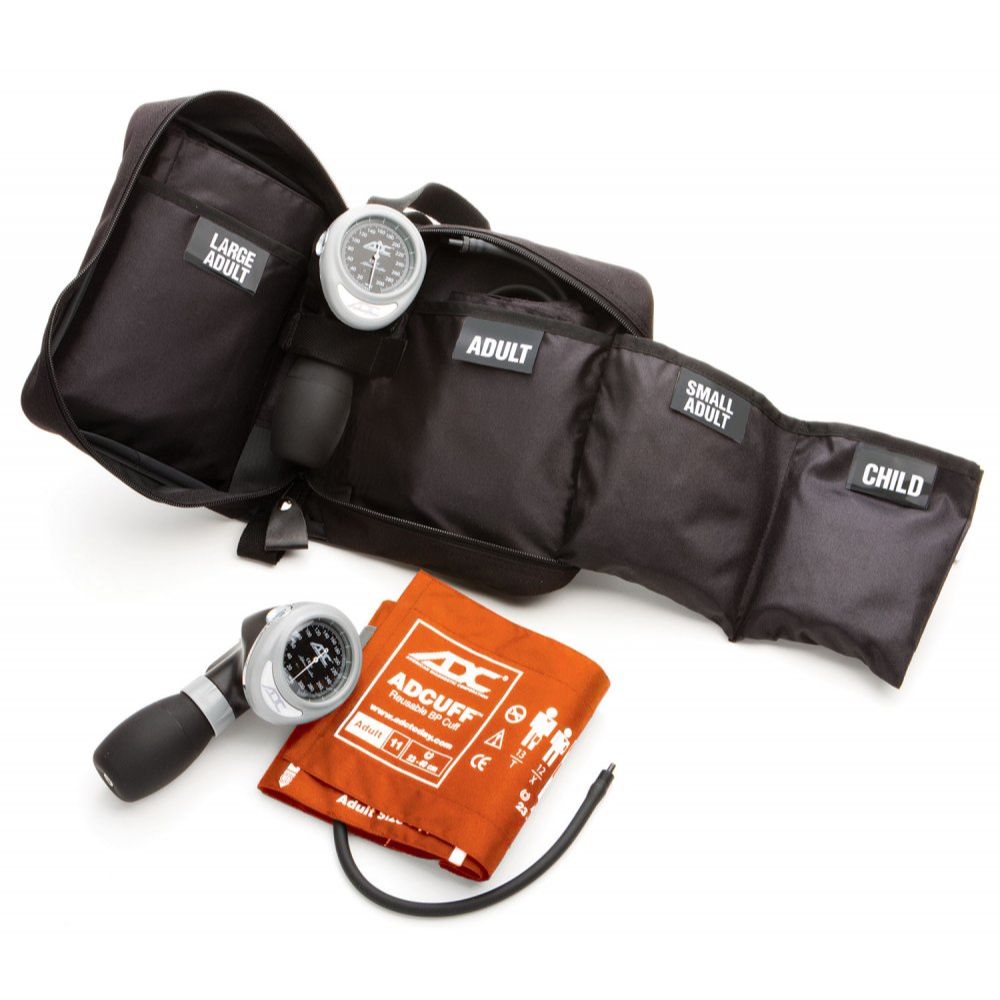

The 732 also features:

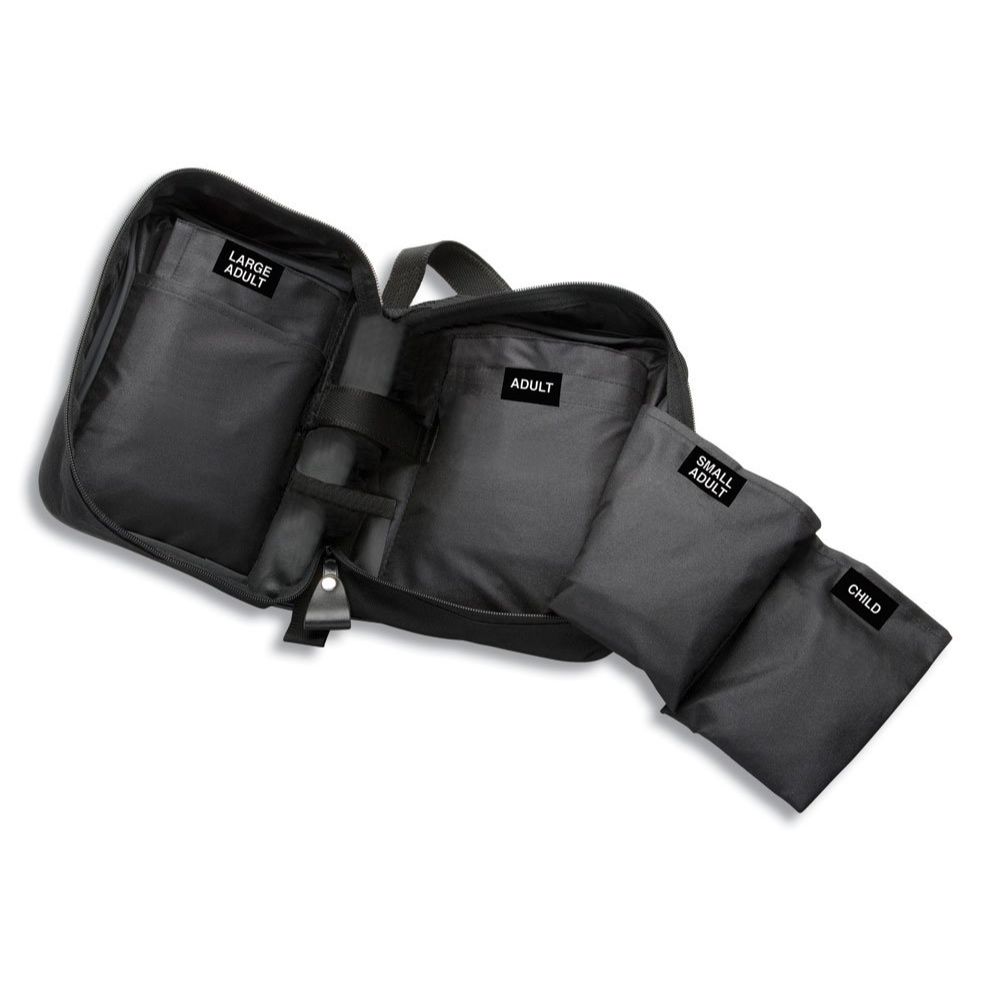

  • A multi-pocketed, heavy-duty black nylon zipper case that keeps each component securely in place, yet instantly accessible
  • Case measures a compact 8” x 6” x 3.5” and fits in most emergency boxes and trauma kits
  • Includes four cuffs: child, small adult, adult, and large adult

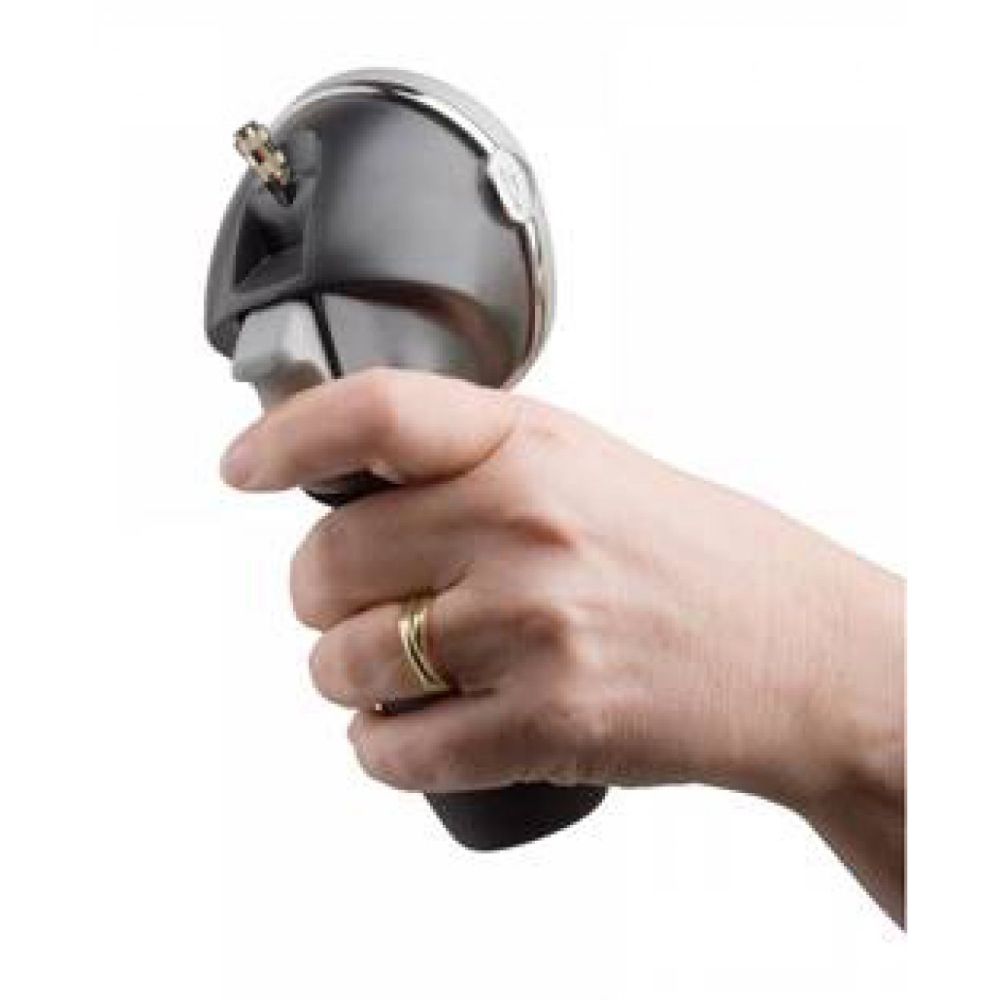

  • Revolutionary palm-style manometer with integral bulb
  • Ambidextrous, infinite-control, trigger-style air release valve for one-hand convenience

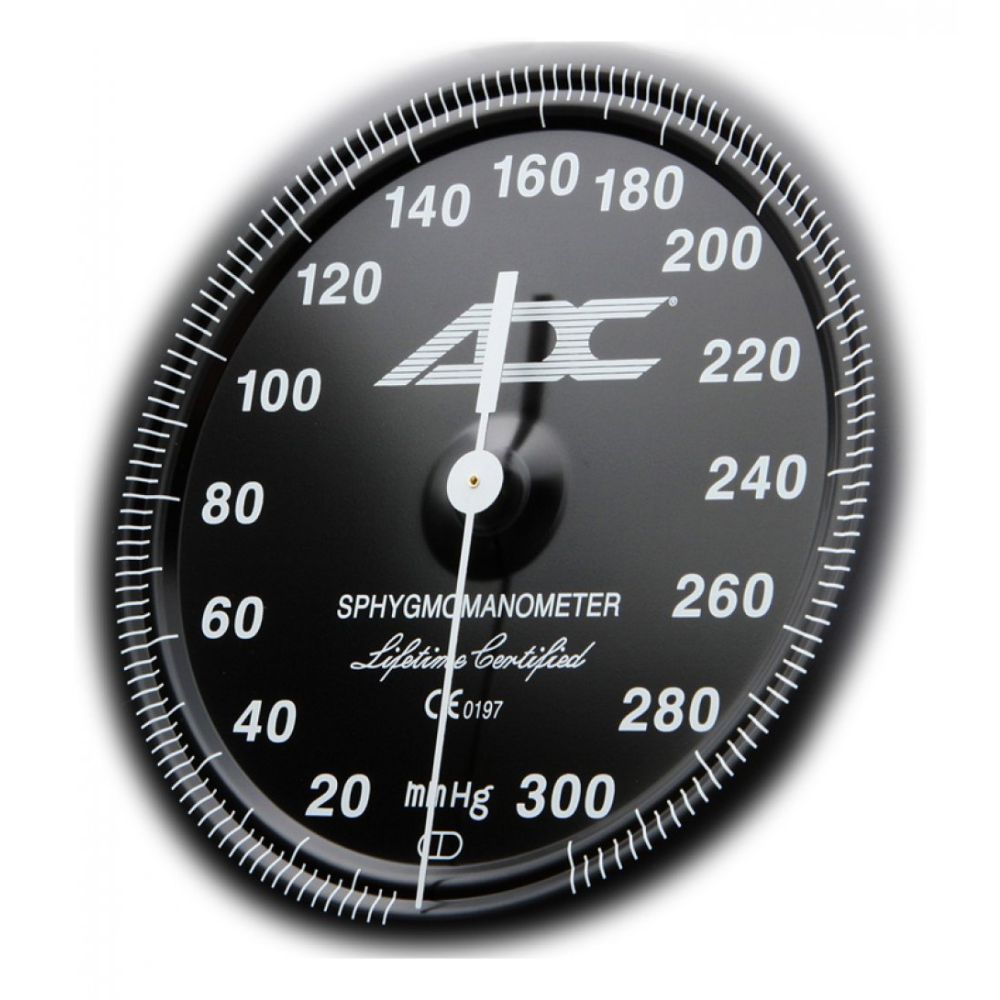

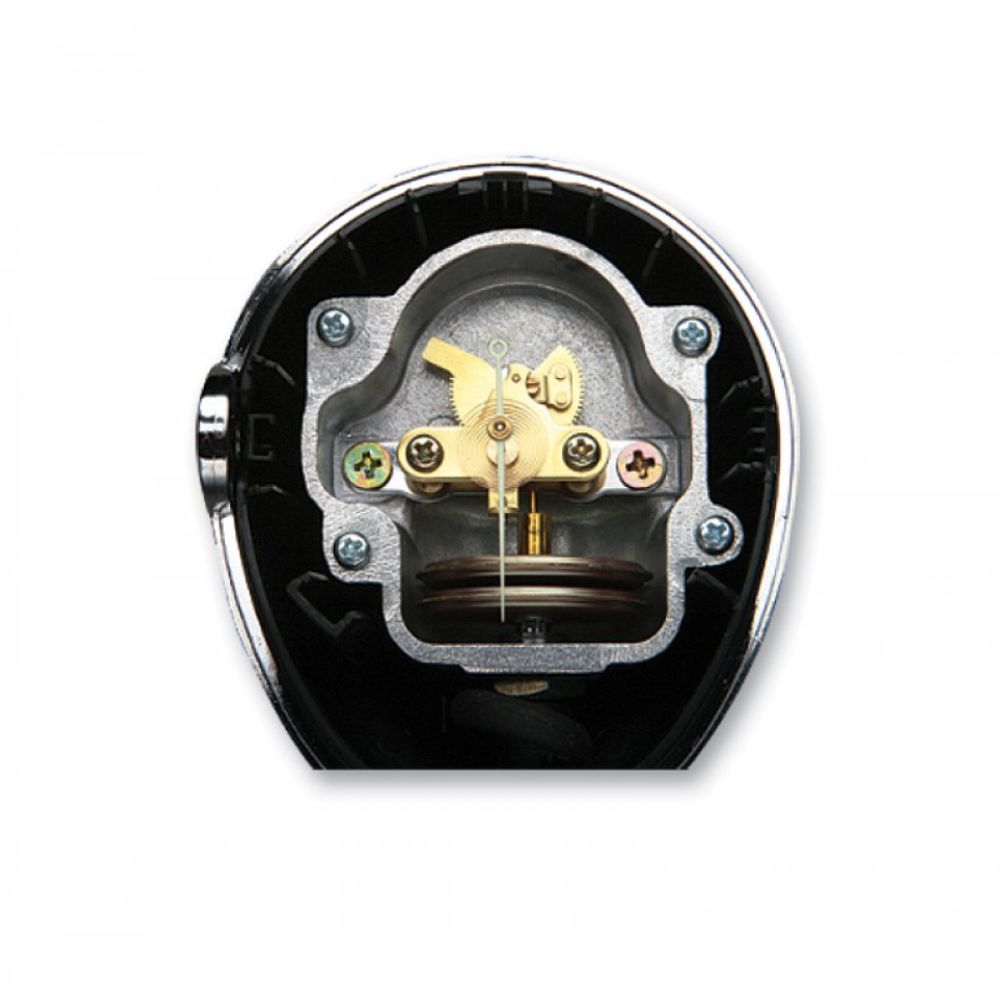

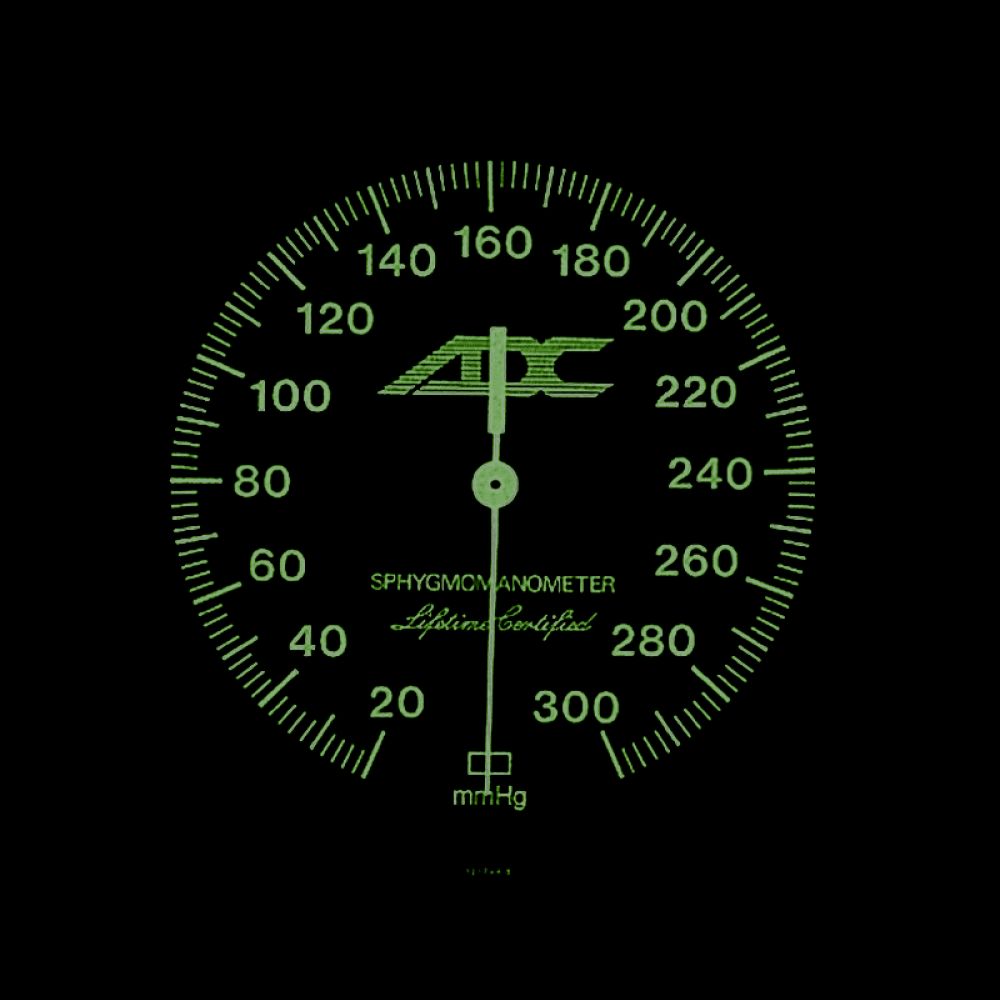

  • Precision-crafted 300mmHg Japanese-engineered manometer, housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance
  • Built with metal bayonet-style connector
  • Includes oversized, color-matched carrying case
  • Lifetime calibration warranty

Made without phthalates or natural rubber latex. Assembled, inspected, and packaged in the U.S.A from foreign components. Meets or exceeds ANSI/AAMI/ISO 81060-1.




More Info

More Info

Sphyg Type: Multicuff
Gauge: 804N
Gauge Warranty: Lifetime
Sphyg Accuracy: +/-3mmHg @ 50ºF(10ºC) - 104ºF(40ºC)
Sphyg Accuracy:
at extended temperature range
+/-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
Storage Temp: -4ºF (-20ºC) - 131ºF(55ºC)
Valve Type: Integral
Number of tubes: 1 Tube
Cuff type: ADCUFF
Cuff size: Multiple

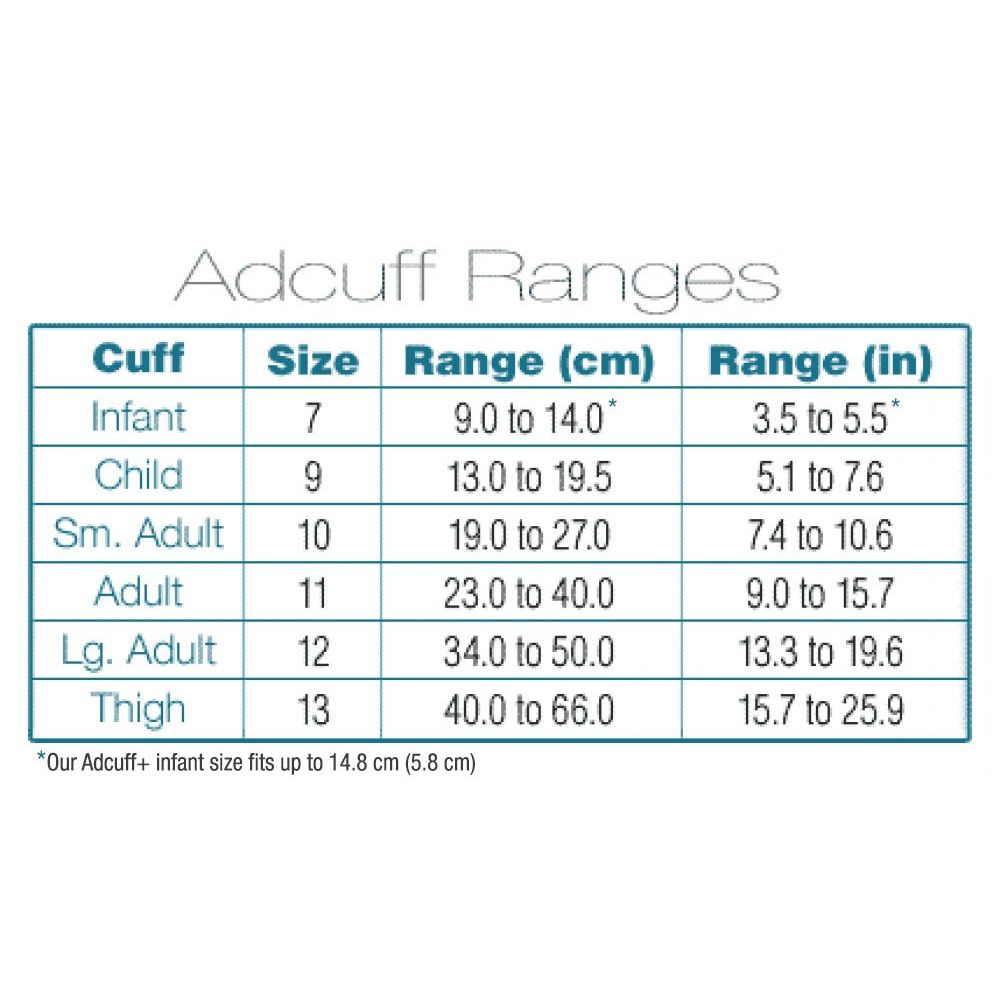

Cuff Range: 13-50cm
Inflation Warranty: 3 Year
Zipper / Storage case: 8814BK



Replacement Parts

Gauge: 804N
Cuff 1: 830-9CBK
Cuff 2: 830-10SABK
Cuff 3: 830-11ABK
Cuff 4: 830-12XBK
Bladder 1: 815-9C
Bladder 2: 815-10SA
Bladder 3: 815-11A
Bladder 4: 815-12X
Cuff and Bladder 1: 845-9CBK-1
Cuff and Bladder 2: 845-10SABK-1
Cuff and Bladder 3: 845-11ABK-1
Cuff and Bladder 4: 845-12XBK-1
Bulb: 804N-109
Connector 1: 804C3
Connector 2: 8974-10
Case: 8814BK
