Special Order Item: Y

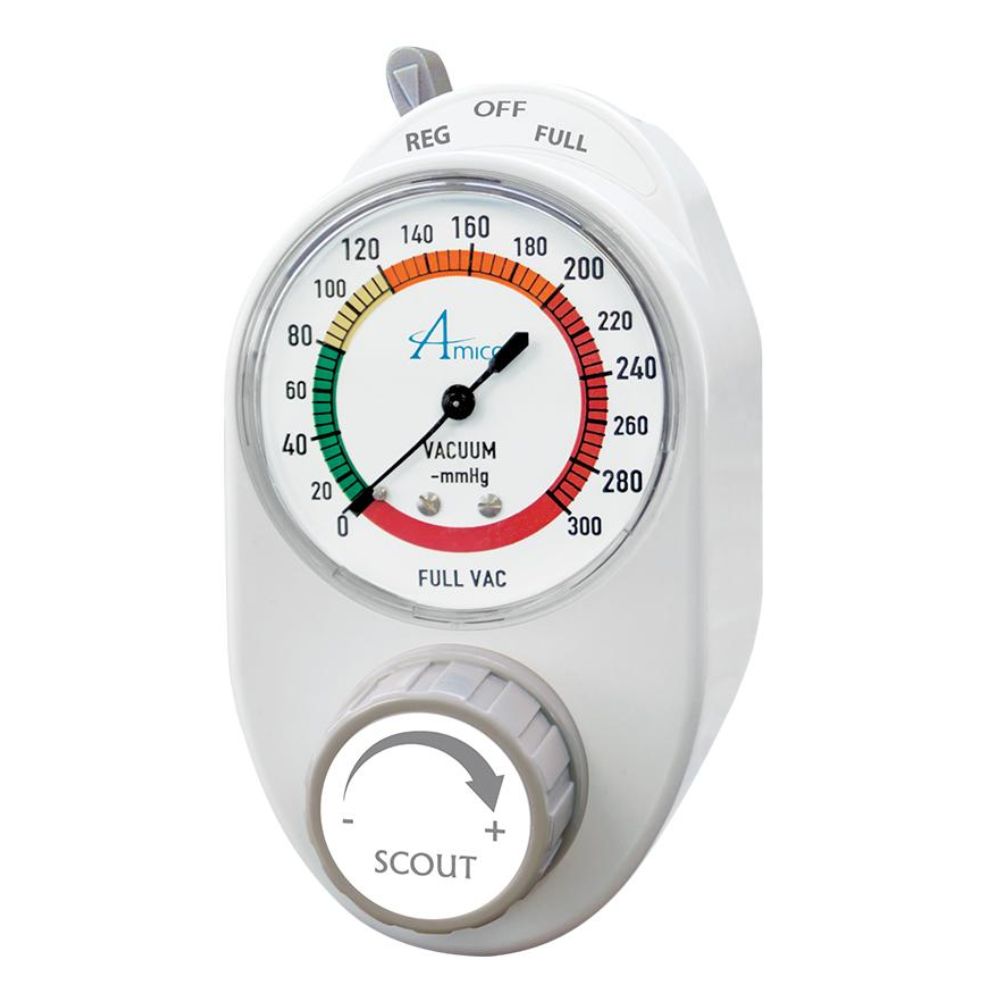

Amico Scout Vacuum Regulator, Continuous 3 Mode

SKU: 816SRA-C3IT-DH

Status: Out of Stock

Each (1)
Call For Price



Amico Vacuum Regulators are the most technologically advanced in the healthcare industry. Our modularity allows for easy upgrade from Analog to Digital and from Continuous to Continuous Intermittent models. Our digital regulators are the first of their kind in the marketplace. They improve patient care by providing greater accuracy and an easy to read gauge compared to conventional Analog Regulators.

  • Scout Series
  • Analog Display
  • Continuous 3 Mode
  • ISO Color Coding
  • Tubing Nipple Patient Connection
  • DISS Handtight

Features

Unit Features
  • Easy serviceability and maintenance
  • Full line of Regulators includes: Adult, Surgical, Pediatric and Neonatal models
Cleaning & Service Features
  • Ability to reverse flush for cleaning (cydex)
  • Only unit on the market with a disposable see-through back body

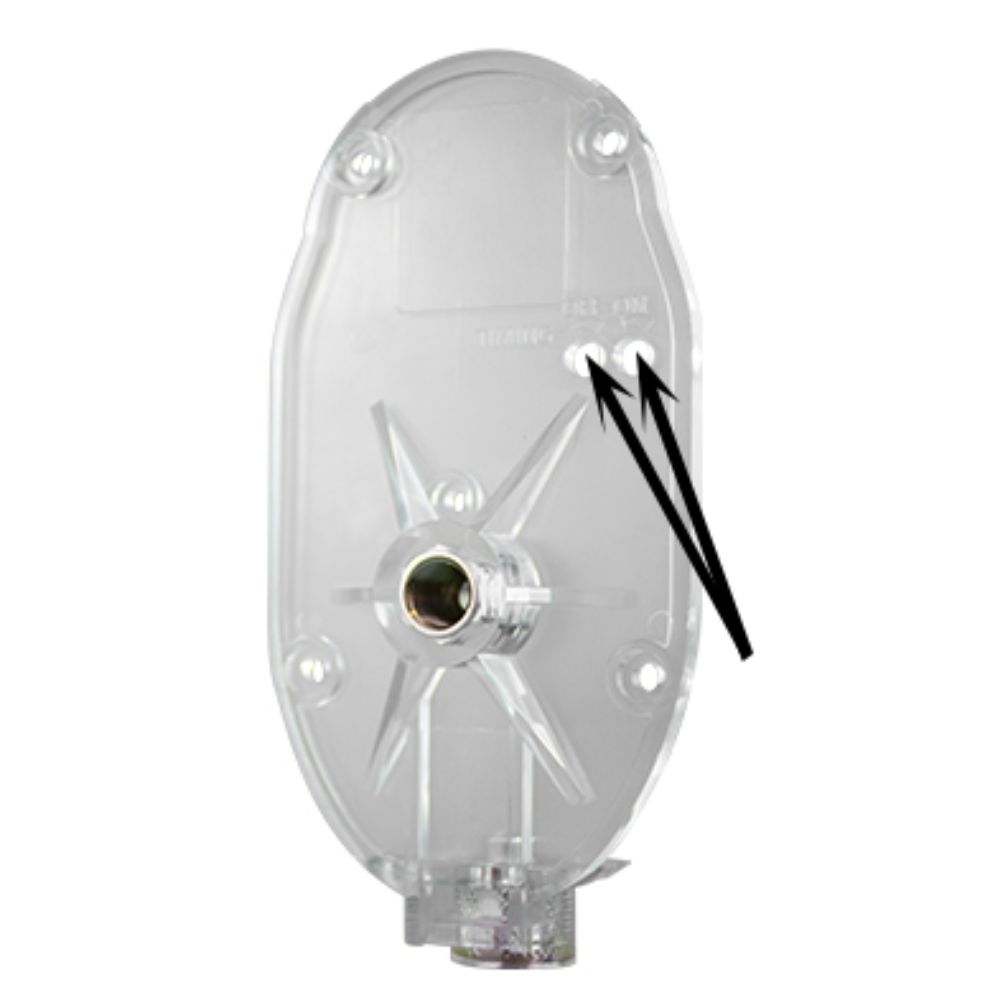

Clear Back Plate
  • Remove from the outlet and identify contamination immediately

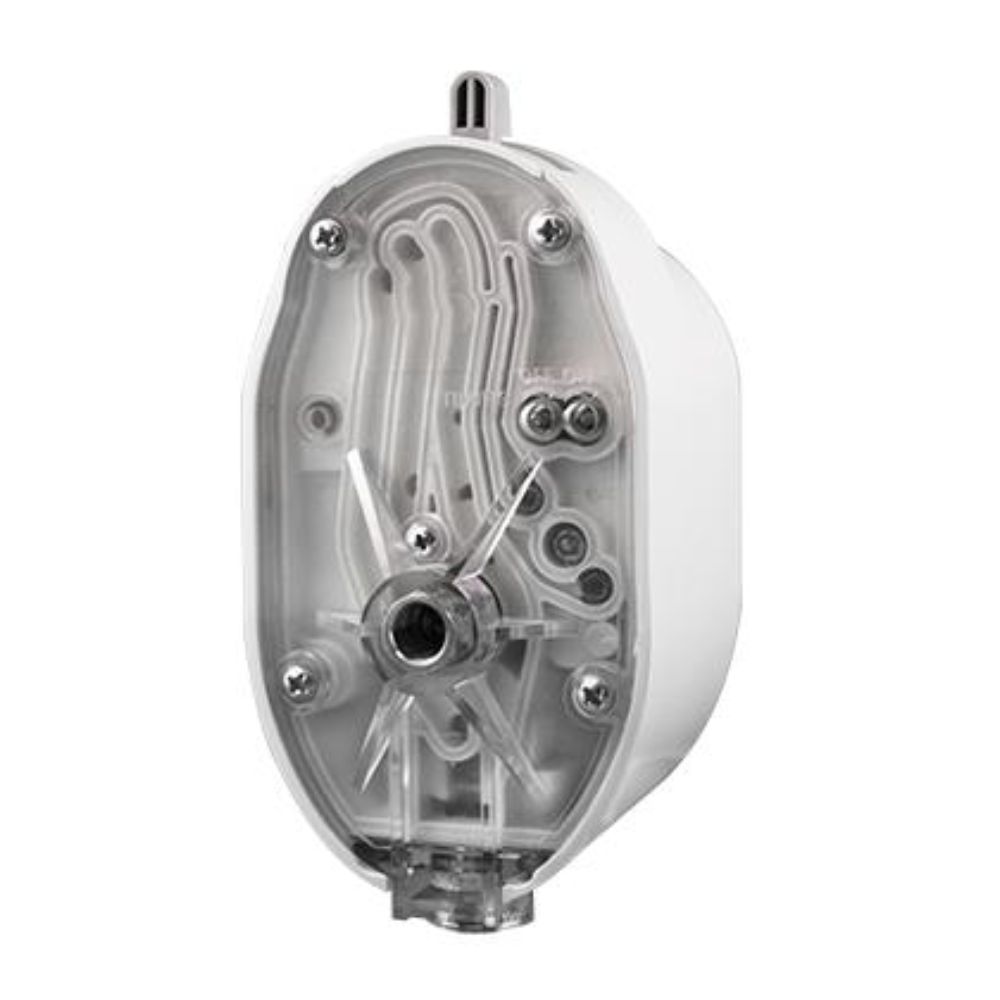

Disposable Body
  • Front and Back of See-Through DISPOSABLE Back Channel
Color Coded Labels
  • White for continuous, grey for continuous/intermittent

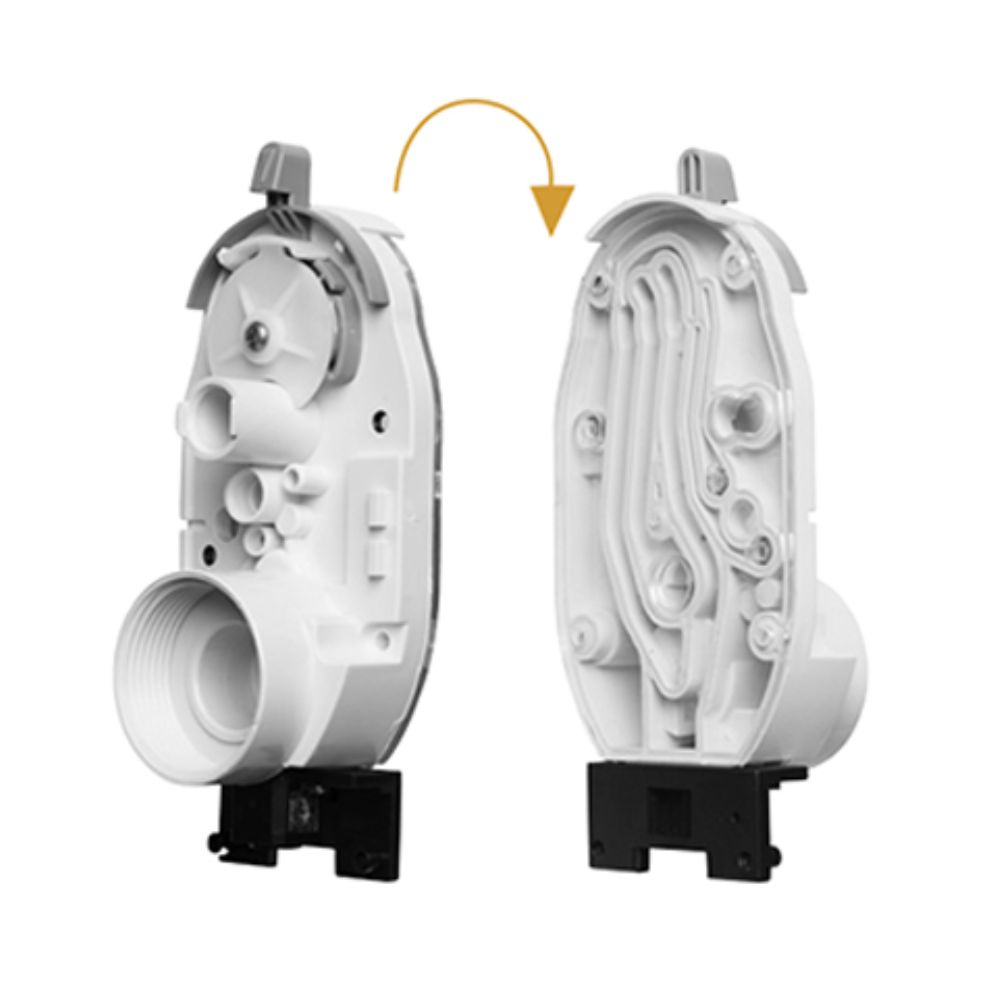

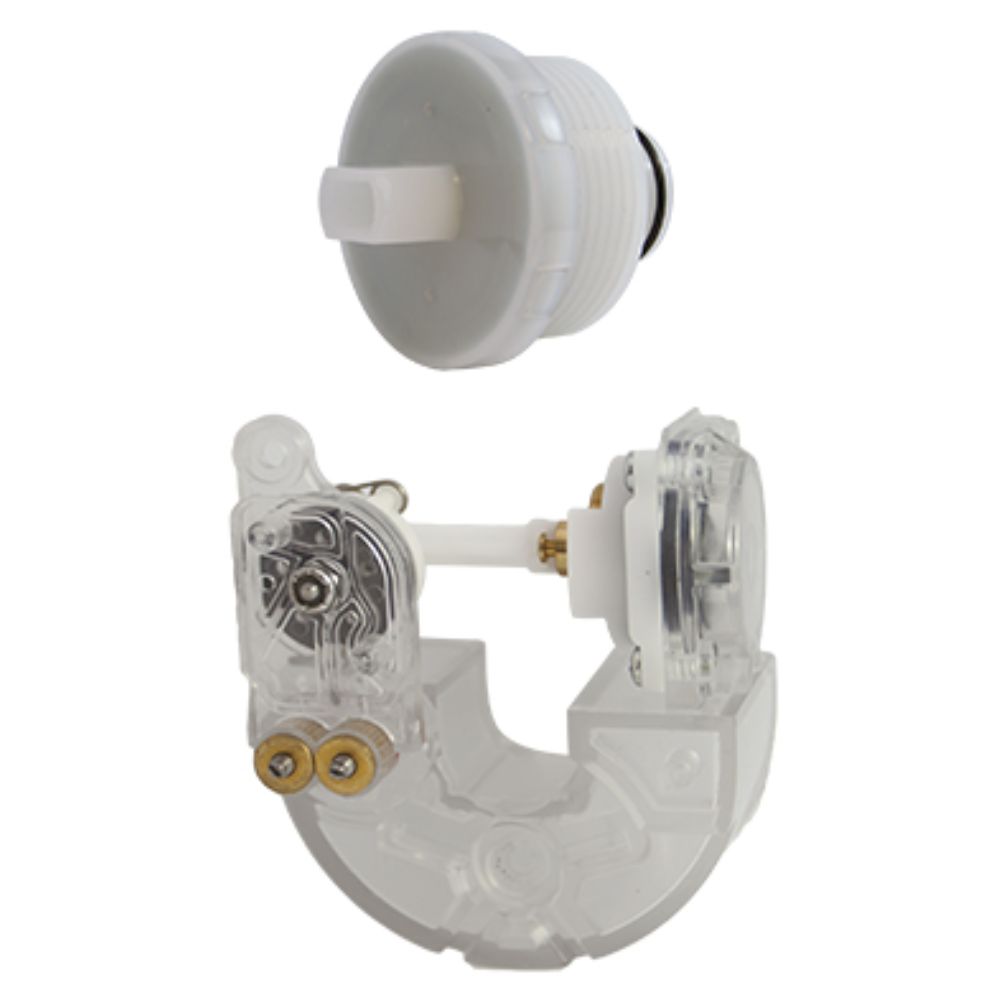

Modular Components
  • ABS Polymer Casing
  • Regulating Knob and Intermittent Module
  • Back Plate with Access to Timing Valves



More Info

More Info

Performance

  • Intermittent Flowrate: Adult: 8 LPM, Pediatric: 8 LPM, Neonatal: 8 LPM
  • Continuous Flowrate: Adult: 65 LPM, Pediatric: 40 LPM, Neonatal: 40 LPM
  • 16 seconds on/ 8 seconds off
  • Timing can be adjusted on the back of the unit with access to ON and OFF needle valves, starts in the OFF position

Gauge Accuracy

  • Analog: ± 3% Full-scale
  • Digital: ± 1% Full-scale

Physical

  • Dimensions:
    5.94” H x 2.93” W x 4.04” D
    (15.09 x 7.44 x 10.26 cm)
  • Weight:
    Continuous: 0.65 lbs (0.29 kg)
    Intermittent: 0.8 lbs (0.36 kg)

Battery

  • Lithium: 2, 2/3 AA batteries, 3.6 V,
    1.6 Ah, lithium

Vacuum Range

  • Continuous High/Surgical:
    0 - 750 mmHg (94 KPA)
  • Continuous and Continuous/Intermittent:
    0 - 300 mmHg (40 KPA)
  • Pediatric and Pediatric/Intermittent:
    0 - 160 mmHg (20 KPA)
  • NeoNatal and NeoNatal/Intermittent:
    0 - 100 mmHg (13 KPA)
