Special Order Item: Y

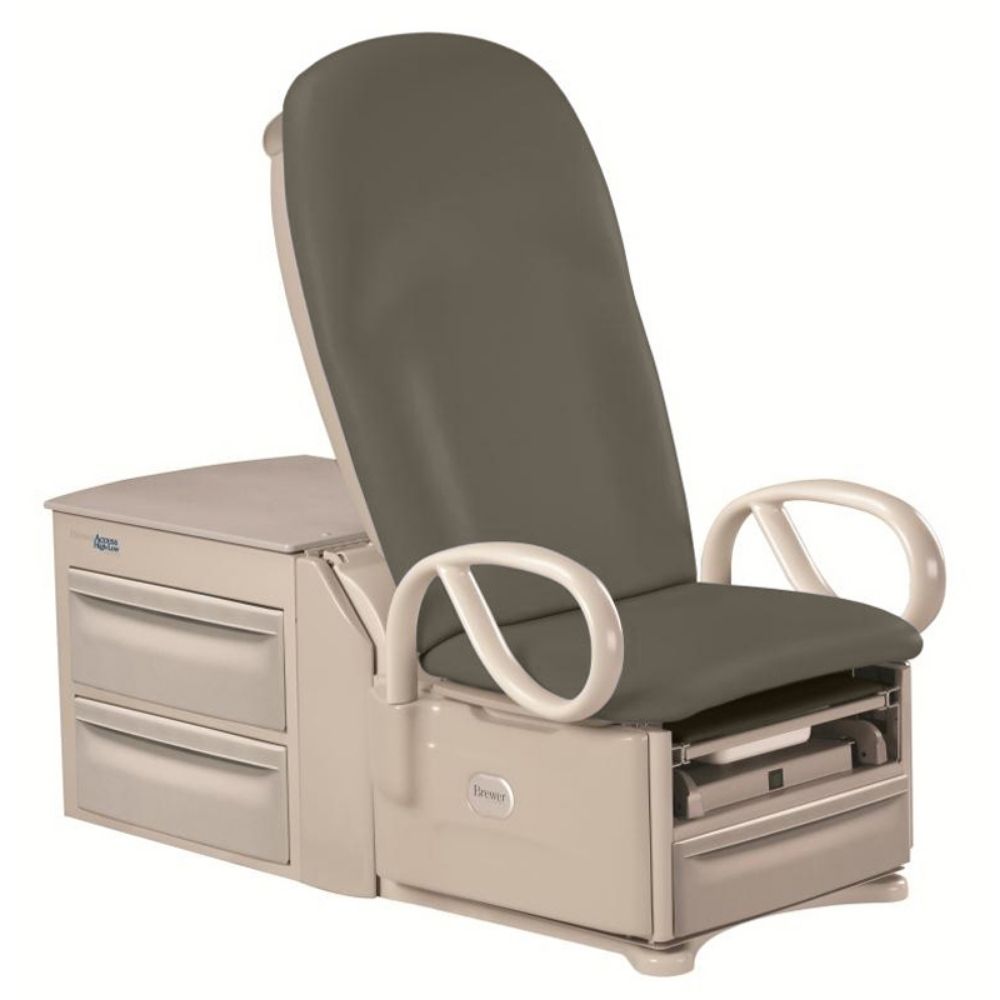

Brewer Access™ High-Low Power Exam Table

Each (1)
Call For Price



Brewer’s Access™ High-Low Exam Table design provides an 18″ profile in the seated position. This allows safe level patient transfer from standard wheelchair heights, complete with upright seat back and safety grab bars to simplify reliable patient transfers. The Access power medical table system also offers abundant storage capacity with Brewer’s signature pass-through drawer system and it’s backed by Brewer’s standard 3-year warranty. Choose between the standard Access power exam table’s 500 pound weight capacity or the Access High-Low Exam Table 700 with 700 pound weight capacity for geriatric patients.

Advanced patient care for the health of your practice.

  • Up to 700 pound weight capacity
  • 3-year warranty
  • Innovative chair design supports the patient’s back
  • Chair-to-Table design takes patient from consultation to examination
  • Standard  patient transfer grab bars provide extra security
  • Patented pass-through side drawers eliminates right/left hand setup problems
  • Largest storage capacity available on the market today
  • 12 standard color options
  • Dual-toned plush upholstery also available
  • UL Approved: 60601-1
  • Winner HIDA Product of the Year

Advanced Safety

  • Exclusive SafeGlide™ leg extension increases safety and satisfaction
  • Safety grab bars for patient stability
  • Return to chair feature on power back models
  • Anti-tamper on/off switch limits accidental motion
  • Sensors prevent injuries during table movement
  • 18” (45.7 cm) low height, 28” (71.1 cm) when flat
  • Easy on/off for patients
  • Powered backrest adjusts for easy patient positioning
    • Pneumatic or power back models available

Patient Comfort

  • Easy lateral wheelchair transfers
  • Multi-density support upholstery
  • Standard adjustable ergonomic stirrups
  • Toe/leg extension & stainless steel debris tray
  • Premium, plush upholstery available in 5 colors

Abundant Storage

  • Pass-through work surface on side of table
  • Patented pass-through side drawers accessible from right or left side of the table
  • Front drawer: 19.7” x 19.2” x 4” (50.3 cm x 48.8 cm x 9.7 cm)
  • Side drawers: 22.7” x 20.2” x 7” (57.4 cm x 51.3 cm x 17.8 cm)
  • Covered storage for up to 6 additional paper rolls
  • Paper roll storage capacity: 23” x 23” x 3.25” (58.4 cm x 58.4 cm x 8.3 cm)
  • Slide-through paper roll holder accepts 21” & 18” rolls (53.3 cm & 45.7 cm)



More Info

More Info

Table Specifications

  • 450 lb (204 kg) weight capacity
  • Standard patient assist grab bars
  • Standard adjustable stirrups
  • Standard foot control
  • Standard 3-year warranty
  • Height: 18” – 39” (45.7 cm – 99.06 cm)
  • Length: 57”, extends to 78” (144.8 cm – 198.1 cm)
  • Upholstery Width: 28” (71.1 cm)
  • Leg extension length: 21” (53.3 cm)
  • Goes flat at 28” (71.1 cm)
  • 115VAC, 60Hz
  • Safe, low voltage actuators
  • 5° pelvic tilt / 60-Watt front drawer heater
  • Easy to clean, seamless upholstery
  • 12 standard upholstery color options
  • Custom colors available

Certifications

All Brewer products conform to US & Canadian electrical & medical industry codes & regulations and meet or exceed industry requirements.

  • UL 60601-1

Accessories

  • #99505- Stainless Steel Treatment Pan
  • #99502 – Universal Socket Clamp (Qty. 1)
  • #99504 – Deluxe Articulating Knee Crutches **
  • #100253 – Urology Drain Pan System
  • #100407 – Front Drawer Dividers (can order up to 7)
  • #100540 – Two Knee Crutch Support Adaptors (plant installed)
  • #100550 – Two Knee Crutch Support Adaptors (field installed)
  • #101800 – Electrical Outlet Option (Model #6001 only, plant install, must be ordered at time of table purchase)
  • #102031 – Brewer Welch Allyn® Light IV Bracket (plant installed)
  • #102032 – Brewer Welch Allyn® Light IV Bracket (field installed)

** Needs two #99502 and one of either #100540 or #100550

Mfg Item No.

Mfg Item No.

  • 6000 – Brewer High-Low Exam Table – Pneumatic Back
  • 6001 – Brewer High-Low Exam Table – Pneumatic Back w/pelvic tilt & drawer warmer
  • 6500 – Brewer High-Low Exam Table – Power Back
  • 6501 – Brewer High-Low Exam Table – Power Back w/outlet, pelvic tilt & drawer warmer

Access High-Low 700 lb Models:

  • 6800 – Brewer High-Low Exam Table 700 – Power Back
  • 6801 – Brewer High-Low Exam Table 700 – Power Back w/outlet, pelvic tilt & drawer warmer

Color Options

  • 9626000-22 - Gunmetal
  • 9626000-24 - Black Satin
  • 9626000-25 - Saddle
  • 9626000-29 - Deep Sea
  • 9626000-31 - Sapphire
  • 9626000-32 - Blue Fog
