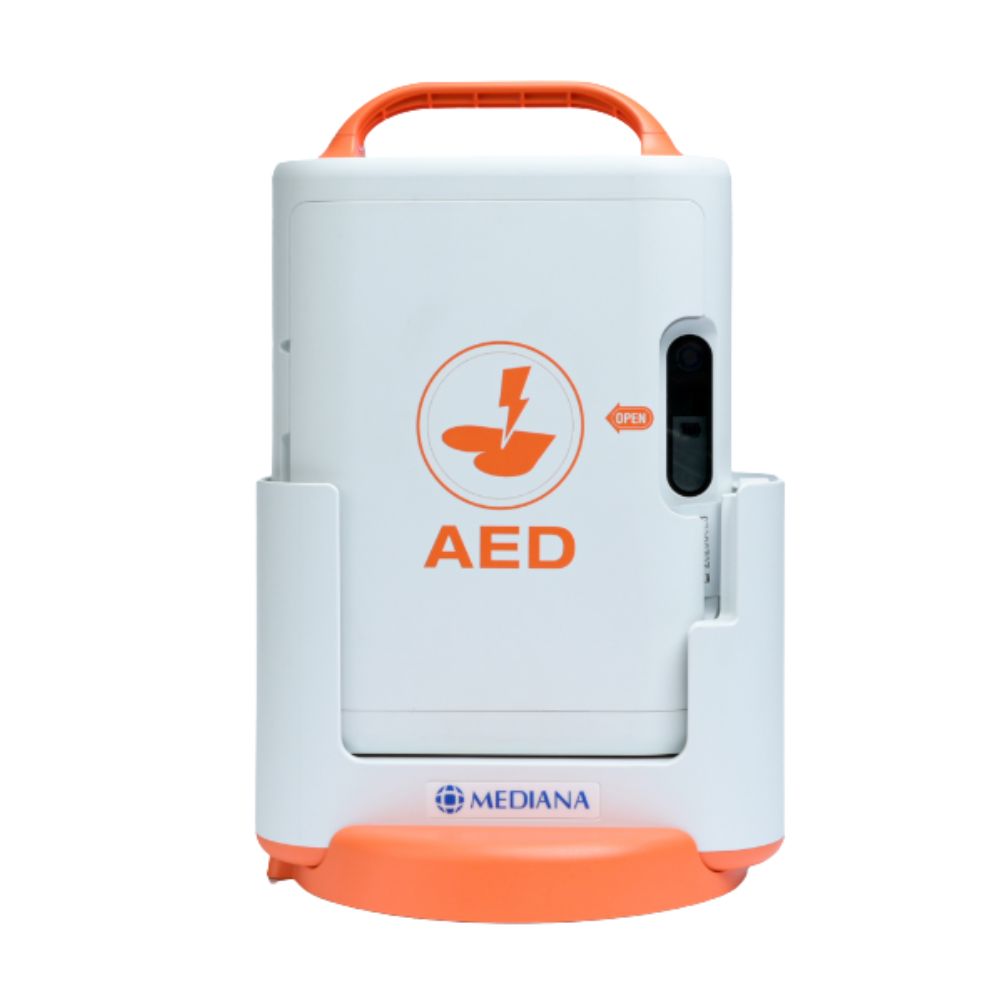

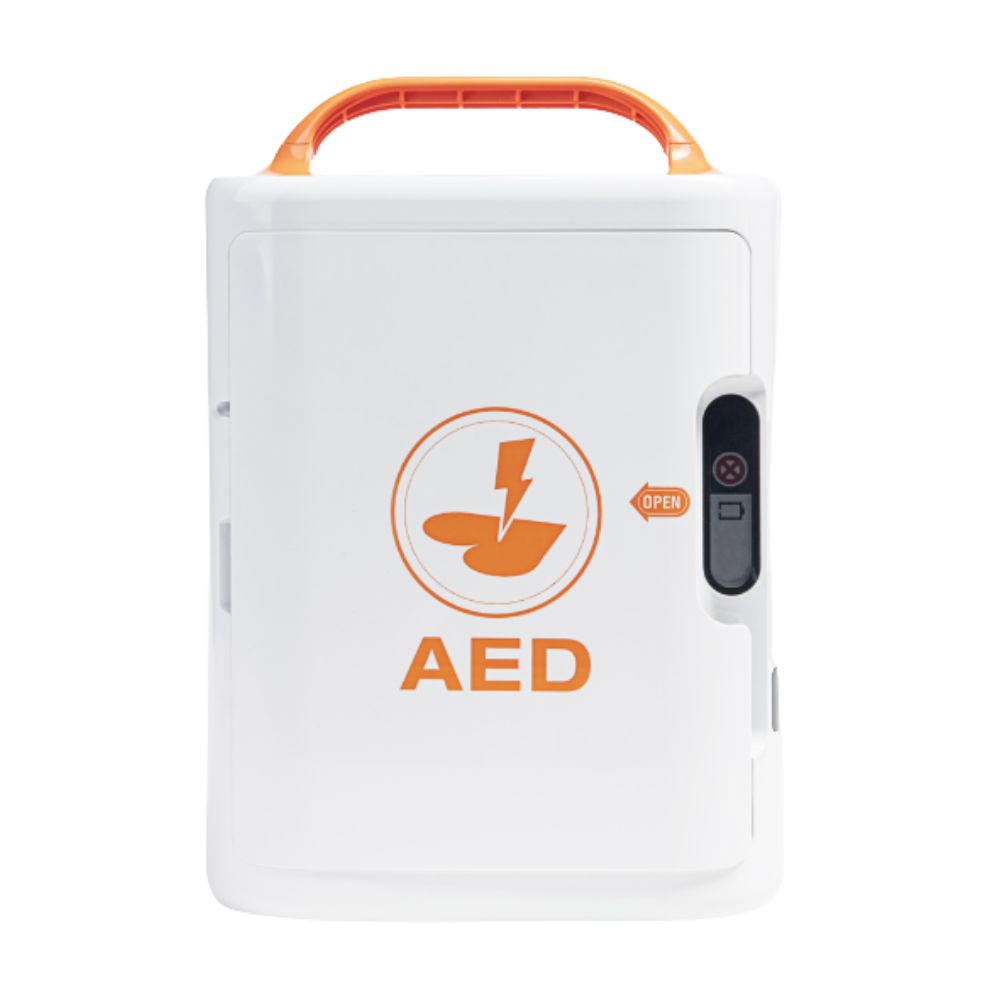

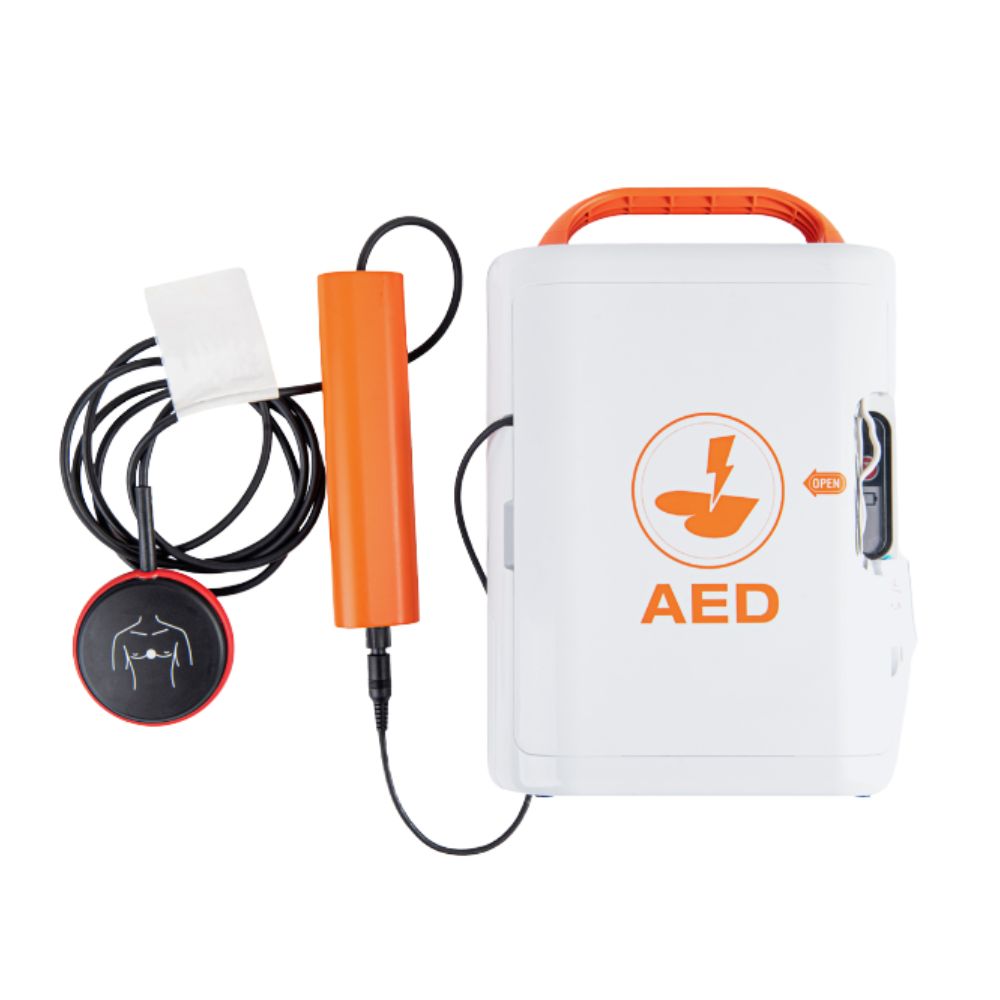

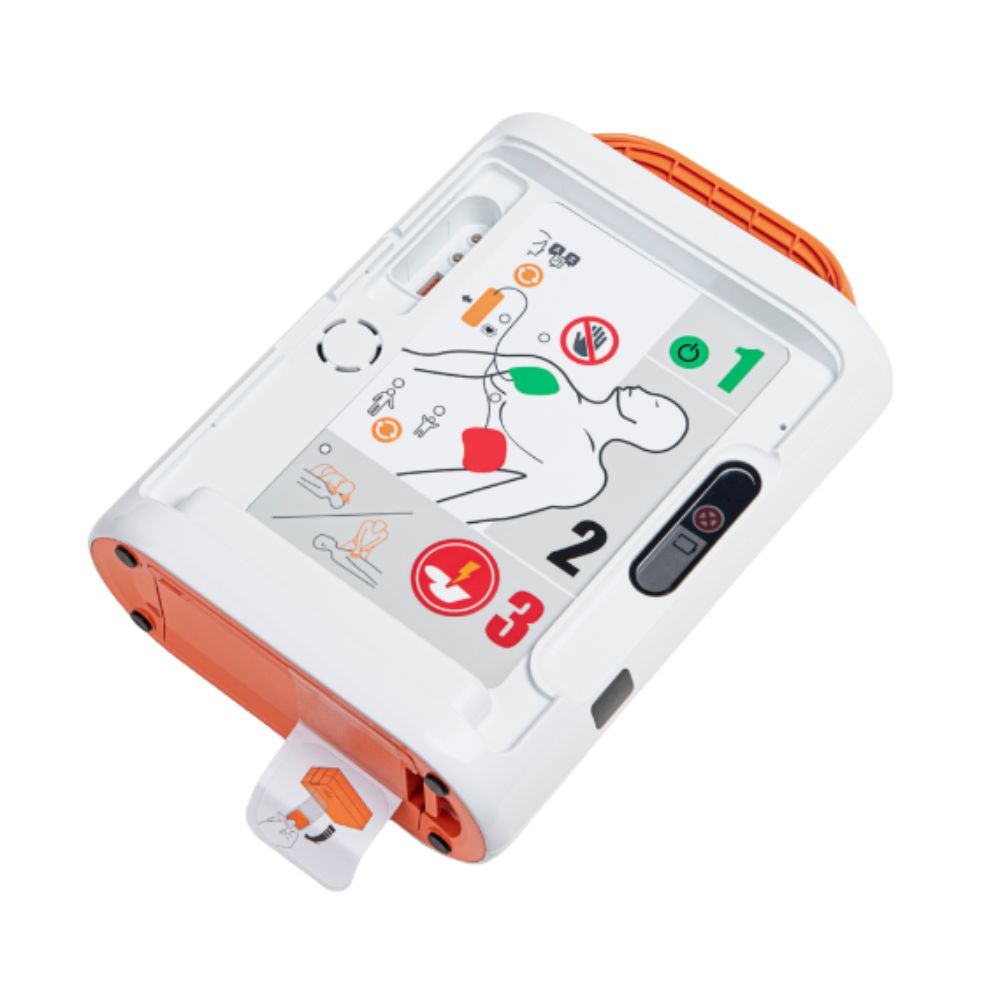

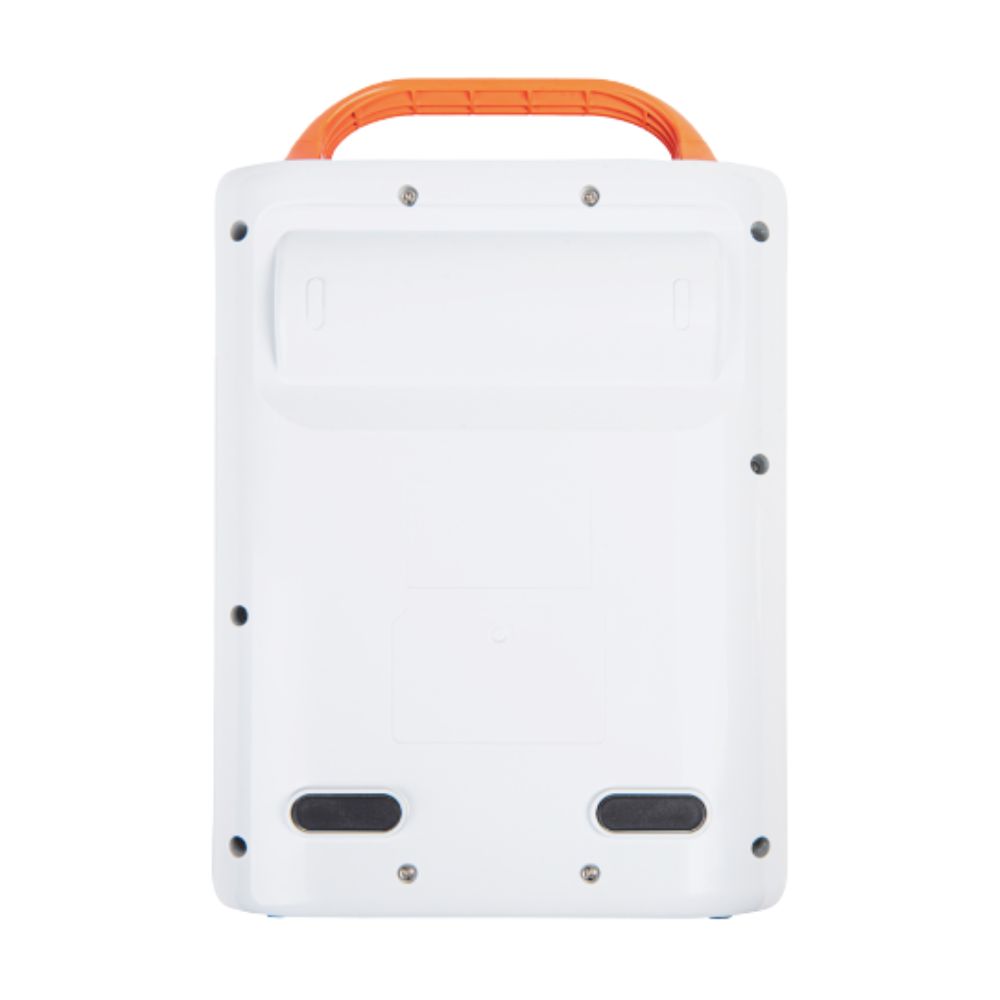

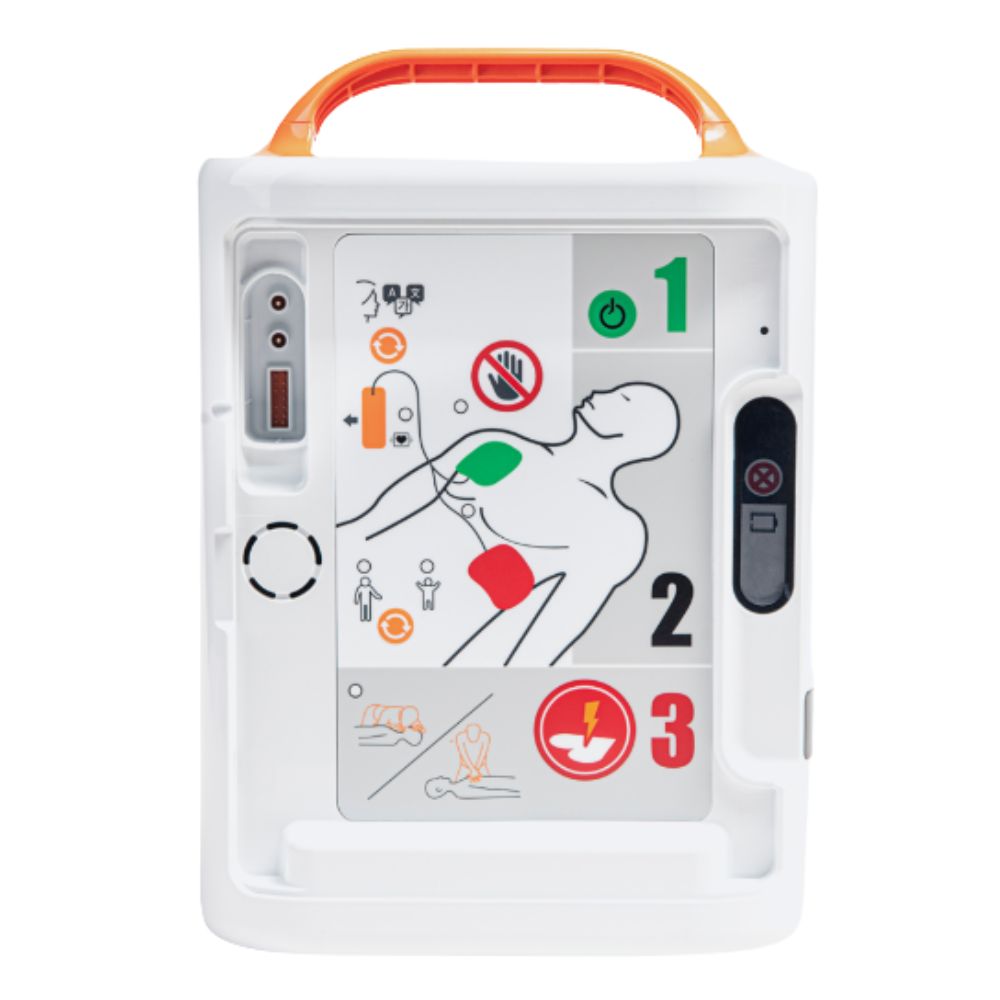

Mediana HeartOn A16 AED, Semi-Auto, Multi-Voice Prompt

SKU: 260A16M-DS-0E

Status: Out of Stock

Each (1)
CA$1,715.00



The Mediana AED is a medical device designed to restore heart function by delivering an electric shock when necessary, analyzing the heart condition of the patient in cases of sudden cardiac arrest, where the heart stops beating and oxygen supply is halted. This AED can be used anytime, anywhere, and by anyone to address emergency cardiac conditions.

Features

Pace-Pulse Detection and Rejection Function

The A16 filters external pulse, like a pacemaker, and removes it from the ECG reading.

Fast Shock Delivery

Shock delivery within 10 seconds.

Multilingual

English, Welsh and Polish

Operation

Fully-automatic - no need to press the shock button. Semi-automatic - flashing button indicates 'ready for shock delivery' - users press the button to deliver shock.

Voice Recording

Enables a chek to see what kind of on-site checks were done. When the device turns on, the A16 records automatically.

Pads Quality Check

Checks connectivity, expiry date or whether they have already been used and damaged.

Other Features

  • Simultaneous ECG Analysis and High-Voltage Charging and Pre-Connected Pads: Reduces defibrillation time to within 21 seconds, with analysis and charging completed within 10 seconds
  • Lightweight (weighs less than 2kg)
  • ICON LED indicators and sound alerts operate simultaneously, making it easy for anyone to use
  • LCD Indicator allows for easy management by displaying battery and device status when the power is off
  • Universal Pads mode selection button allows use for both adults and children
  • Self-Test functions: regular inspections (daily/weekly/monthly), POST(power-on self test), and BIST(Battery insert self-test) check the main unit, battery, temperature, and pad status, displaying results with O or X indicators
  • IR Port for easy PC connection and SD Card for data review and software upgrades.
  • 2020 AHA(American Heart Association) Guidelines Compliant
  • Shock Delivery: 170~195J(±5%) for adults, 44~51J(±5%) for children
  • Dimensions: 200(W) x 286.5(h) x 90(D) mm
  • Battery Capacity 3000mAh/15V (200 shocks or 6hr monitoring)
  • IP Level: IP55 protection against liquid and dust intrusion.



More Info

More Info

DEFIBRILLATION ELECTRIC SHOCK


Waveform: Biphasic Truncated Exponential (BTE) waveform
(Impedance compensation)
Energy: Adult: 170 to 195J (±5%)
Paediatric: 44 to 51J (±5%)
Operating Mode: Semi-Auto, Fully-Auto

ECG


Lead: II (RA, LL)
Patient Impedance: 25 to 200 ohm

Detection V/F

V/T

 greater than or equal to 0.2mV
Adult: greater than or equal to 150 bpm

INDICATION


Standard Controls Power button, shock button, patient mode switch button, select language button.
Visible Indicators Action icon, Status LCD (AED, battery, temperature and pads status).
Audible Indicators Audio speaker (voice prompt, CPR indication). Beep (CPR indication, power on, critically low battery, self-test fail, alarm of abnormal operation).

PHYSICAL


Dimensions: 286.5H x 200W x 90mmD
Weight: Approx. 1.95kg
(including battery, excluding pads).
Ingress Protection: IP55

SELF TEST


Cycle: Every 24 hours, 1 week, 1 month.
Power on self test, battery insertion self test.
Test Result: Status LCD displays ‘O’ / ‘X’.

DATA BACKUP AND COMMUNICATION


Standard Internal memory, SD card slot,
IR communication por
