Special Order Item: Y

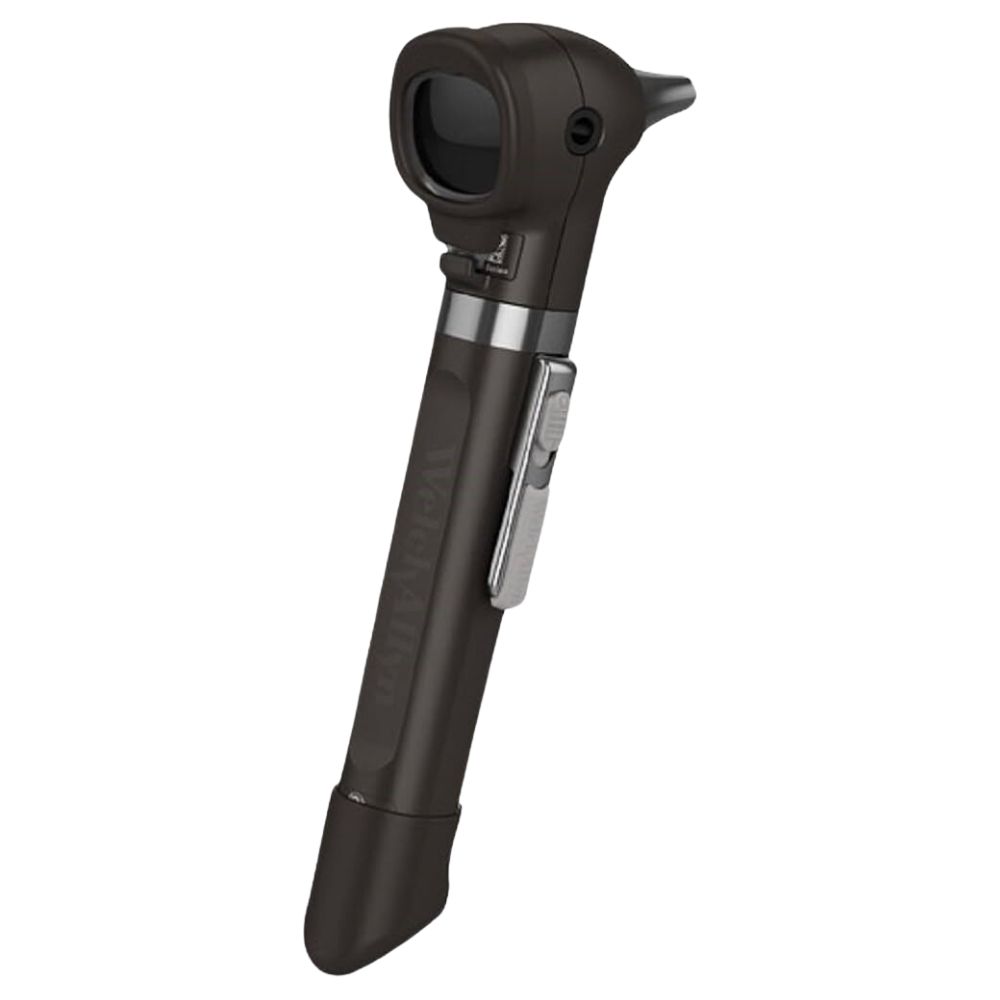

Welch Allyn® PocketPlus LED Otoscope

Status: Out of Stock

Each (1)
CA$314.75



  • Welch Allyn SureColor™ LED lamps come standard
  • The most durable pocket-style otoscope on the market1, designed to hold up through your training and into practice
  • Lightest-weight Welch Allyn otoscope, for the comfort and control you need
  • Fiber optics provide cool light with no reflections or obstructions
  • Features 6 lumens for 2X the light intensity
  • Comes standard with matching color and vanilla accessories

1Based on rigorous drop test versus leading competitors



More Info

More Info

Total Height 16.8 cm
Head Width 3.0 cm
Head Depth 5.1 cm
Handle Diameter 2.1 cm
Weight Head and Handle (no batteries) 2.53 oz (71.7 grams)
Battery Type AA Alkaline x 2
Battery Life >5 hrs
Lamp Type SureColor LED
Lamp Life 10,000 to 20,000 hours
Light Transmission Fiber Optic
E5ciency (lumens/watt) 10.3
Magnification Power 3.4X
Diopter 13.6
Working Distance w/Specula (visual, best focus dist) 6.5 mm from 4 mm speculum tip
Resolution w/Specula (visual, lp/mm) 3 - 6 lp/mm at working distance
Depth of Focus w/Specula (visual) 0 to 11 mm from speculum tip
Focal Length 73.45 mm (2.9 in)
Field of Illumination/Distribution at FO 34.1 mm @ 50 mm distance from tip
UV/VIS/IR at FO (% from SPD, Optronic) 0%/99.47%/0.53%
Total Flux at FO (lms, Andor) 3.62 lumens
Intensity as FO (lux, FC, UDTS370/263 photometer) 1540 lux with 4 mm specula
User Contact Temperature 10°C over ambient max
Pneumatic Otoscopy Port Yes
Pneumatic Otoscopy Seal Yes
