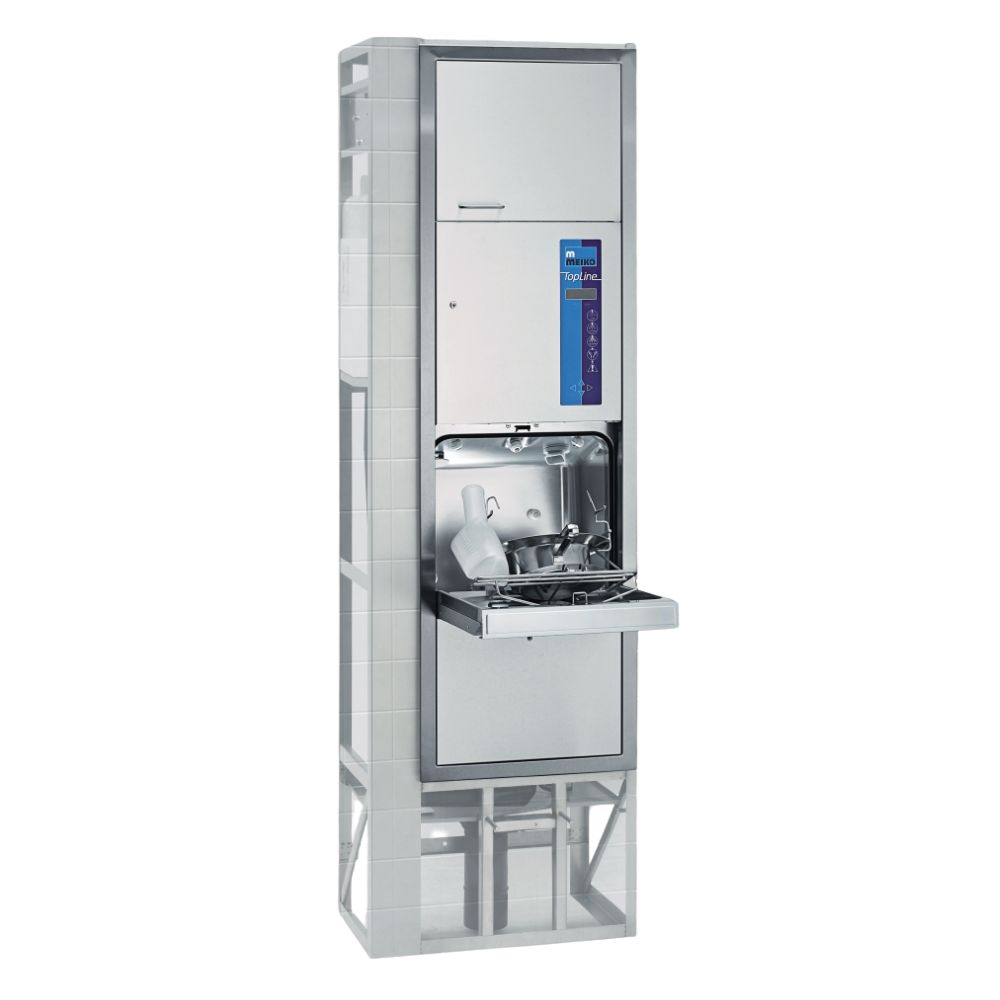

TopLine 30 Washer-Disinfector

What makes the MEIKO TopLine so safe and effective: a wash system with a telescopic rotary nozzle (PowerClean), dual-sensor temperature monitoring (ThermoControl), drying and cooling using filtered air (Dry&Cool), system disinfection of all water lines (T.A.D.), steam prevention (SteamStop), suction lance coding (ChemCode), and a dosing system for detergent and rinse aid (CaStop).

Features

  • Patented technology to achieve the hygiene standards that patients expect
  • A steam tight system to provide the working environment that your staff deserve
  • Maximum flexibility with a freely selectable A0 value (60, 600, 3,000) and multifunctional holder design for different care utensils
  • Safe and hygienic with drying and cooling using filtered air and system disinfection of all water lines
  • MEIKO TopLine is a listed medical device at the FDA
  • Certificate for type testing according to EN ISO 15883-1, -3 and -5.

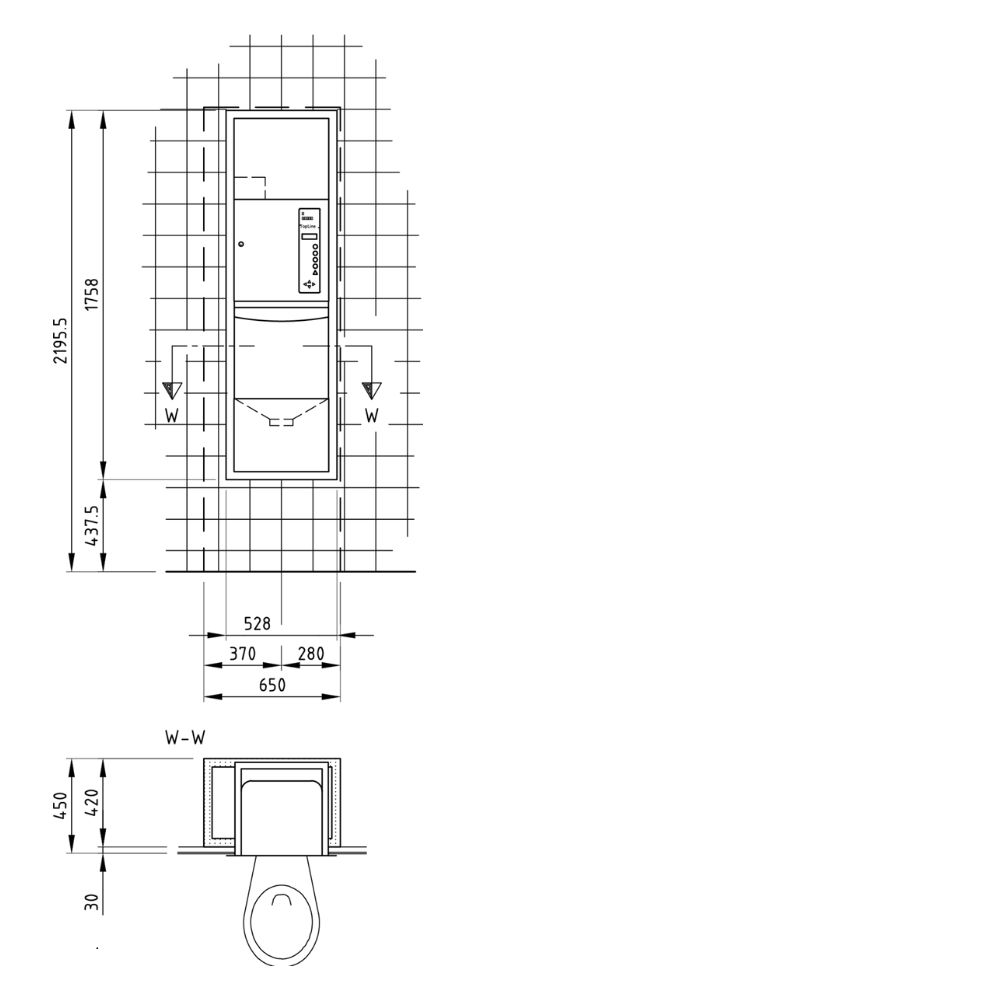

Measurements

This washer-disinfector can be integrated into the wall to save space, offering a great way to equip patients' bedrooms. This washer-disinfector is especially beneficial for intensive care units and isolation wards. It eliminates the need to carry contaminated care utensils along the corridors and keeps each care utensil assigned to one particular patient.



Width 650 mm
Depth 450 mm
Height 2210 mm
Cold water 1/2" NPT
Hot water 45-60 °C 1/2" NPT
Pressure > 1
Flow > 18
Drain 4" (DN 75) P-trap
Electrical connection (Standard) 208/230V, 60Hz, 3Ph, 4.2/4.6 kW (electric heat)
Electrical connection (Alternative) 208/230V, 60Hz, 1 Ph, 0.8 kW (steam heat)
Emission sound pressure level at the workplace (LpA) 50

Features

Telescopic rotary jet (PowerClean)

The wash chamber features an extendable telescopic rotary jet and wash nozzles around 360° for efficient care utensil cleaning – down to every last nook and cranny.

Benefits:

  • Targets cleaning on the interior of different shapes of bedpan
  • Highly efficient at washing away microbes
  • The interplay between mechanical washing, temperature and detergents (optional) is even effective (confirmed by expert opinion) against Clostridium difficile spores (now known as Clostridioides difficile)



Temperature control (ThermoControl)

Each programme run is controlled according to the set A0 value and documented. Two sensors cross-check one another, ensuring that the required temperatures are reached and maintained for the set length of time.

Benefits:

  • The highest level of hygiene safety
  • Validates disinfection performance and the cleaning process





Drying and cooling (Dry&Cool)

Dry&Cool: the clue is in the name! Care utensils are dried and cooled before they are unloaded. The air used for this process is filtered beforehand using a patented process.

Benefits:

  • Sterile air thanks to the HEPA filter
  • No risk of recontamination
  • Items can be used again for patients immediately



System disinfection (Total Auto Disinfection)

The hot steam is fed through all water pipes into the wash chamber.

Benefits:

  • Thermal disinfection of all elements in the water system (pipes, nozzles, water tank) over the programme run
  • No recontamination of the system





SteamStop

The programme has finished, you open the door of the wash chamber and you see... nothing! Excess steam is not released into the room. Instead, it is channeled straight into the drain using a separate pipe.

Benefits:

  • No additional heat in the utility room
  • No risk of pathogens escaping into the room, i.e. excellent workplace and hygiene safety



Suction lance coding system (ChemCode)

Blue to blue, grey to grey: the unique colour coding on our suction lances and supply canisters keeps it clear which is detergent and which is rinse aid. There is no way to mix them up.

Benefits:

  • Process reliability
  • User safety





Dosing system for detergent and rinse aid (CaStop)

No need to worry about dosing water softener with rinse aid or detergent (optional). It is all monitored and controlled by sensors.

Benefits:

  • Optimum dosing of chemical agents
  • Automation provides hygiene safety



Adjustable A0 value

You choose the programme – the cleaning and disinfection appliance can be run with any of the following A0 values at any time: A0 60, A0 600 or A0 3,000. Select the value according to your needs, such as potential outbreaks or on isolation wards.

Benefits:

  • Hygiene safety for patients





Stainless steel surfaces

Seamless connections and sealed surfaces to perfectly connect the individual components are brand distinctives for us. Everything is made from stainless steel.

Benefits:

  • Optimises hygienically safe workspace for results that fulfil all customer and statutory requirements
  • Stainless steel surfaces have a bacteriostatic effect and are easy to clean and disinfect



Infrared control system and/or foot switch*

These options enable you to open the doors to the appliance without touching them – simply use the foot switch or move your hand in front of a sensor.

Benefits:

  • Contactless door opening
  • Prevents potential contamination via hands



*Optional Feature





Tailored holder systems*

There are often many different types of washware in a single facility. Custom builds and universal holders by MEIKO ensure that all shapes of care utensil get the optimum clean.

Benefits:

  • Perfect results on every cleaning cycle thanks to holders that are tailored to individual customer needs



*Optional Feature



Slop sink unit with integrated flushing*

Two self-cleaning water nozzles in the slop sink unit produce a powerful spiral flush for a whirl effect. This completely washes away dirt and residues.

Benefits:

  • More hygiene from every angle
  • The seamless slop sink rim makes a significant contribution here



*Optional Feature
