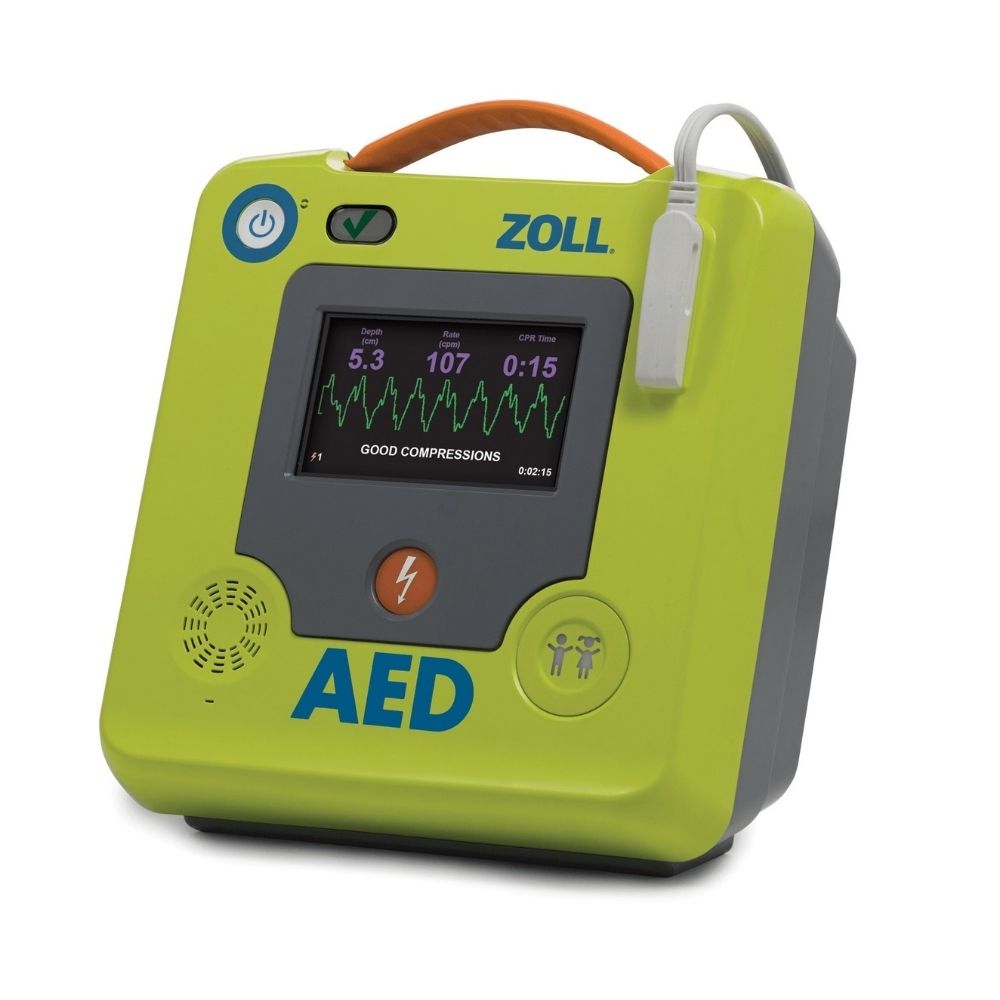

Zoll AED 3™ Automated Defibrillator

SKU: 7408501-001102-06

Status: Out of Stock

Each (1)
CA$2,336.00



The ZOLL AED 3® defibrillator leads the way with Real CPR Help® technology, which provides real-time feedback to guide rescuers in delivering high-quality CPR. The innovative, intuitive design and enhanced features of ZOLL AED 3 give unexpected heroes both the confidence and the knowledge needed to treat sudden cardiac arrest (SCA).

Product Features

  • Enhanced Real CPR Help technology provides real-time CPR feedback on the rate and depth of chest compressions.
  • Text and voice prompts provide visual and audible feedback to the rescuer on CPR quality.
  • High-resolution LCD touchscreen display with vivid rescue images provides visual guidance to responders.
  • A CPR cycle timer and a large color bar gauge show CPR compression depth.
  • Universal one-piece CPR Uni-padz electrodes feature a 5-year shelf life.
  • RapidShock analysis technology minimizes pre-shock pause time.
  • Built-in WiFi connectivity can automatically report device readiness and offer fast access to clinical event data, including CPR performance data.
  • Integrated pediatric rescue: CPR Uni-padz and child-mode selection softkey offers one solution to treat both adults and children.
  • Built to withstand extreme temperatures and altitude, vibration, and shock.
  • Rugged design features an IP (ingress protection) rating of IP55 for dust and water.
  • 5-year smart battery can report its power status.
  • Post-event support via RescueNet® Event Summary.
  • Comprehensive automatic self-tests ensure device readiness.
  • Semi-automatic and fully automatic configuration.
  • Export clinical data, update device software, or clone/upload configuration through the USB port

Enhanced Real CPR Help

Proven Real CPR Help technology helps rescuers deliver high-quality CPR. ZOLL AED 3 has a full-color display with vivid rescue images, a CPR cycle timer, and a large color bar gauge that shows CPR compression depth.

RapidShock Analysis

RapidShock™ analysis enables the industry’s shortest rhythm analysis and allows ZOLL AED 3 to deliver a shock, if needed, in as little as 5 seconds. Minimizing pause time allows for more lifesaving CPR, improves CPR quality, and can improve patient outcomes from sudden cardiac arrest.*

Integrated Pediatric Rescue

The universal design of the CPR Uni-padz® electrodes gives rescuers a single solution for both adult and pediatric victims of SCA. To treat a child, use the same set of pads and simply activate child mode.

WiFi-connected

Cloud connectivity can enable automatic reporting of device status, giving you confidence your AED is ready in an emergency. WiFi also provides the ability to quickly access and transmit cardiac arrest event data to medical professionals.

Touchscreen Display

In addition to displaying integrated, real-time CPR feedback, the ZOLL AED 3 screen also includes one-of-a-kind intuitive touchscreen capabilities. The touchscreen allows quick access to AED information and enables configuration without the need for additional external devices or software.



More Info

More Info

Specifications

Defibrillator

  • Protocol: Semiautomatic and Fully Automatic configuration
  • Waveform: ZOLL Rectilinear Biphasic™
  • Defibrillator Charge Hold Time: 30 seconds; ZOLL AED 3 Automatic model: 3 seconds prior to automatic shock delivery
  • Energy Selection: Factory preprogrammed selection (Adult: 120 J, 150 J, 200 J; Child: 50 J, 70 J, 85 J)
  • Patient Safety: All patient connections are electrically isolated
  • Charge Time: Less than 10 seconds with new battery
  • Pre-shock Pause: Less than 5 seconds (semi-automatic) and less than 8 seconds (automatic) with new battery
  • Electrodes: ZOLL CPR Uni-padz™
  • Self-test: Configurable automatic self-test every day or every 7 days. Default: every 7 days. Monthly full-energy test (200 J).
  • Automatic Self-test Checks: Battery capacity, status, and expiry; electrode connection and expiry; ECG and charge/discharge circuits; microprocessor hardware and software; CPR circuitry and pads sensor; audio circuitry
  • Compression Depth: 1.9 cm to 10.2 cm; 0.75 in to 4 in
  • Defibrillation Advisory: Evaluates defibrillation pad connection and patient ECG to determine if defibrillation is required.
  • Shockable Rhythms: Ventricular fibrillation with average amplitude >100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM for adults, 200 BPM for paediatrics. For ECG analysis algorithm sensitivity and specificity, refer to ZOLL AED 3 Administrator’s Guide.
  • Patient Impedance Measurement Range: 10 to 300 ohms
  • Defibrillator: Protected ECG circuitry
  • Display Format: High-resolution LCD with capacitive touch panel
  • Display Screen Size: 5.39 cm x 9.5 cm; 2.12 in x 3.74 in
  • Data Recording and Storage: User-configurable for 1 or 2 clinical events for total of 120 minutes. Includes ECG, impedance measurements, device prompts and CPR data.
  • Data Recovery: Controlled by touchscreen, uploaded to USB memory stick, or ZOLL Case Review™ over a Wi-Fi network
  • Internal Clock Synchronisation: Coordinated Universal Time (UTC) synchronisation occurs when communicating with the ZOLL Online server.



Device

  • Size: (H x W x D) 12.7 cm x 23.6 cm x 24.7 cm; 5.0 in x 9.3 in x 9.7 in
  • Weight: 2.5 kg; 5.5 lbs (with battery)
  • Power: Battery
  • Wireless: 802.11 a/b/g/n
  • Security Protocols: WPA 1, WPA 2, WPA Personal, WPA Enterprise
  • Port: USB 2.0
  • Rescue Accessory Pack Contents: Non-latex gloves, a CPR barrier mask, razor, paper towel, and towelette.
  • Device Classification: Class II and internally powered per EN60601-1
  • Design Standards: Meets applicable requirements of EN 60601-1, IEC 60601- 1-11, IEC 60601-2-4



Environmental

  • Operating Temperature: 0° to 50°C; 32° to 122°F
  • Storage Temperature: -30° to 70°C; -22° to 158°F
  • Humidity: 10% to 95% relative humidity, non-condensing
  • Vibration: IEC 60068-2-64, Random, Spectrum A.4, Table A.8, Cat 3b; RTCA/DO-160G, Fixed Wing Aircraft, Section 8.6, Test Cat. H, Aircraft Zone 1 and 2, EN 1789, Sweep per EN 60068-2-6 Test Fc.
  • Shock: IEC 60068-2-27; 100G
  • Altitude: -381 m to 4573 m; -1250 to 15,000 ft
  • Particle and Water Ingress: IP55
  • Drop Test: 1 meter; 3.28 feet



Battery

  • Battery Capacity: Typical new battery running at an ambient temperature of +20° C to +25° C (68° F to 77° F) can provide: 140 defibrillator discharges at maximum energy (200 joules), or 6 hours of continuous monitoring (with 2-minute CPR periods) Note: CPR periods shorter than 2 minutes can decrease the operating time that can be obtained from a new battery.
  • Type: Disposable, sealed lithium manganese dioxide
  • Battery Standby Life (once installed): 5 years with weekly self-test. End of life indicated by blank status window (typical remaining shocks: 9).
  • Battery Shelf Life: Store for up to 2 years at 23°C (77°F) prior to installing in ZOLL AED 3 to maintain above battery life.
  • Temperature: 0°C to 50°C (32°F to 122°F)
  • Humidity: 10% to 95% (non-condensing)
  • Weight: 317.5 grams; 0.7 lbs Size: (H x W x D) 27.75 mm x 133 mm x 88 mm; 1.0 in x 5.16 in x 3.5 in
  • Nominal Voltage: 12 volts



CPR Uni-padz

  • Shelf Life: 5 years
  • Conductive Gel: Polymer Hydrogel
  • Conductive Element: Tin
  • Packaging: Multilayer foil laminate pouch
  • Impedance Class: Low
  • Cable Length: 142 (+/-3.8) cm; 56 (+/- 1.5) in
  • Design Standards: Meets requirements of IEC 60601-2-4, 2010
